Standard and available convenience features on the Honda CB500F

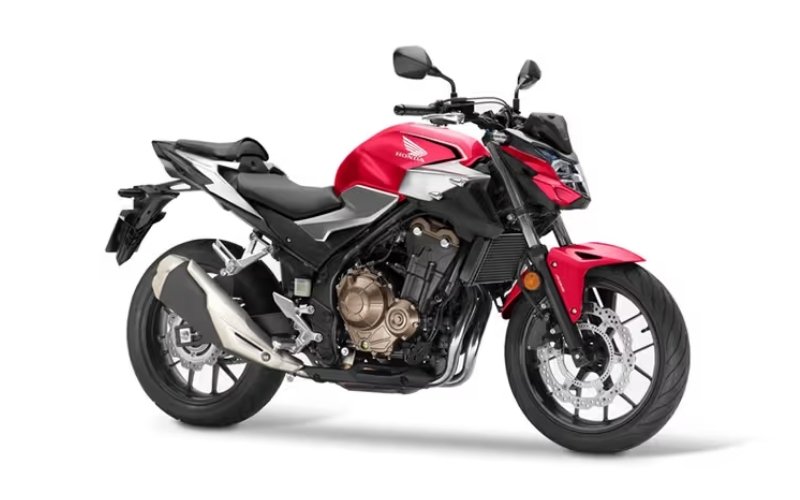

Available in 4 official factory dual-tone and metallic shade options
Detailed technical data, dimensions, chassis, transmission and electrical specifications
| Engine | 500 cc, liquid-cooled, 4-stroke, parallel twin |
| Bore × Stroke | 67.0 × 66.8 mm |
| Compression Ratio | 10.7:1 |
| Valve System | DOHC, 4 valves per cylinder |
| Fuel System | PGM-FI (Programmed FuelInjection) with 34 mm throttle bodies |
| Transmission | 6-speed manual |
| Clutch | Assist and slipper clutch |
| Final Drive | O-ring sealed chain |
| Overall Length | ~2,080 mm |
| Overall Width | ~800 mm |
| Overall Height | ~1,060 mm |
| Wheelbase | 1,410 mm |
| Seat Height | 790 mm (31.1 in) |
| Ground Clearance | ~145 mm |
| Fuel Tank | 17.1 L (4.5 gal) |
| Kerb/Wet Weight | 188-189 kg (~414 lb) |
| Front Tyre | 120/70-ZR17 |
| Rear Tyre | 160/60-ZR17 |
| Front Brakes | Dual 296 mm discs, radial 4-piston calipers, ABS |
| Rear Brake | 240 mm single disc, ABS |
| Frame | Steel diamond-tube design |
| Front Suspension | 41 mm Showa SFF-BP USD telescopic fork, 120 mm travel |
| Rear Suspension | Pro-Link single shock, 120 mm travel, adjustable preload |
| Instrument Console | Fully digital LCD display |
| Display Features | Speedometer, tachometer, trip meter, fuel gauge, gear position, clock |
| Lighting | Full LED (headlamp, tail lamp, indicators) |
| Battery | 12V maintenance-free |
