Standard and available convenience features on the Honda CBR500R

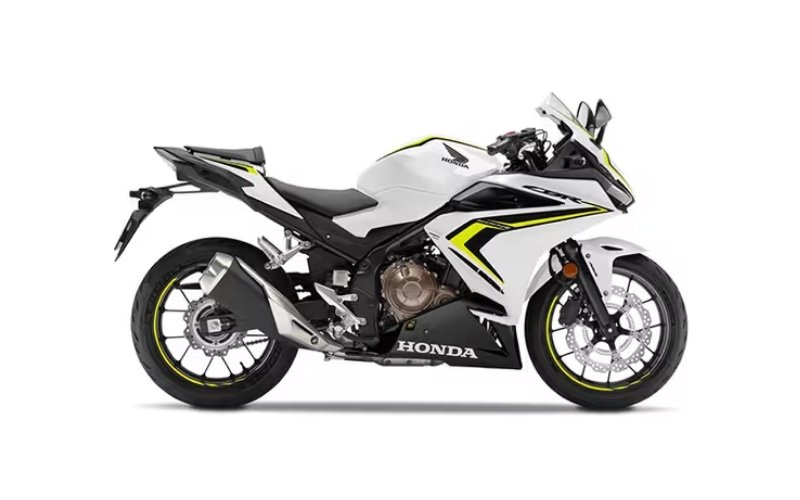

Available in 2 official factory dual-tone and metallic shade options
Detailed technical data, dimensions, chassis, transmission and electrical specifications
| Engine Capacity | 500 cc |
| Engine Type | Liquid-cooled, 4-stroke, parallel twin |
| Bore × Stroke | 67.0 × 66.8 mm |
| Compression Ratio | 10.7:1 |
| Valve System | DOHC, 4 valves per cylinder |
| Fuel System | PGM-FI (Programmed Fuel Injection), 34 mm throttle bodies |
| Transmission | 6-speed manual |
| Clutch | Assist and slipper clutch |
| Final Drive | O-ring sealed chain |
| Overall Length | 2,080 mm |
| Overall Width | 760 mm |
| Overall Height | 1,145 mm |
| Wheelbase | 1,410 mm |
| Seat Height | 785 mm |
| Ground Clearance | 130 mm |
| Fuel Tank Capacity | 17.1 L |
| Kerb/Wet Weight | 192 kg |
| Front Tyre | 120/70-ZR17 |
| Rear Tyre | 160/60-ZR17 |
| Front Brakes | Dual 296 mm discs, 4-piston radial calipers, ABS |
| Rear Brake | 240 mm single disc, ABS |
| Frame Type | Steel diamond-tube frame |
| Front Suspension | 41 mm Showa SFF-BP USD telescopic fork, 120 mm travel |
| Rear Suspension | Pro-Link monoshock, 120 mm travel, adjustable preload |
| Instrument Console | Fully digital LCD |
| Console Features | Speedometer, tachometer, fuel gauge, gear indicator, trip meters, clock |
| Lighting | Full LED headlamp, tail lamp, indicators |
| Battery | 12V maintenance-free |
