Standard and available convenience features on the Numeros Motors Diplos Max Plus

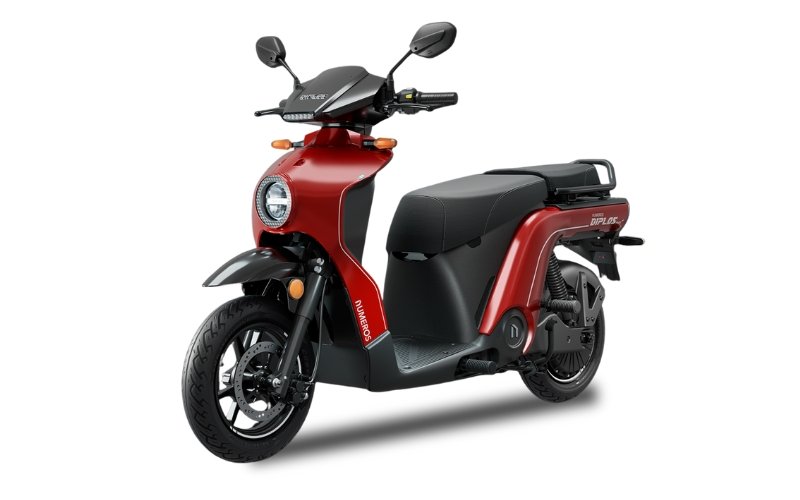

Available in 3 official factory shade options
Detailed technical data, dimensions, chassis, transmission and electrical specifications
| Motor Type | PMSM-Hub |
| Motor Peak Power | 2.89 kW |
| Peak Torque | 140 Nm |
| Riding Modes | Eco, Normal |
| Assist Mode | Reverse |
| Top Speed | 70 km/h |
| IDC Range | 156 km |
| Gradeability | 14° (single rider), 10.2° (GVW 290 kg) |
| Regenerative Braking | Available |
| Battery Type | Li-ion, liquid immersion cooled |
| Battery Capacity | 4.0 kWh (2 × 2.0 kWh packs) |
| Voltage System | 48V |
| Charging Time | 3–4 hours |
| Charger | 1.2 kW fast charger |
| Telematics | Integration feasible |
| Dimensions (L × W × H) | 1960 × 715 × 1125 mm |
| Wheelbase | 1430 mm |
| Ground Clearance | 180 mm |
| Kerb Weight | 140 kg |
| Seat | Dual (largest in segment) |
| Front Tyre | 90/90-12 Tubeless |
| Rear Tyre | 90/90-12 Tubeless |
| Front Brake | Hydraulic disc, 220 mm |
| Rear Brake | Hydraulic disc, 180 mm |
| Braking System | CBS |
| Frame | Strong square-section chassis |
| Front Suspension | Telescopic shock absorber |
| Rear Suspension | Adjustable dual shock absorber |
| Headlamp | LED signature light |
| DRLs | Stylish DRL |
| Indicators | LED |
| Display | Digital instrument cluster |
| Boot Lamp | Yes (inside seat storage) |
| Connectivity | Quick mobile charging, OTA updates, IOT pigtail provision |
| Safety Sensor | Side stand motor cut-off |
